eile GROUT 50 C
areas of usage
- Mounting details of precast concrete constructions,
- Turbines, Pumps, compressor and generators in power plants,
- Filling between industrial machine and steel column bases and mounting plate,
- It is used for head of curtain and column manufacturing.
features of product
- It’s only mixed with water, poured into mould and easy to apply.
- It has high compressive strength.
- It is non-shrink.
- It is fluid.
- It provides strong adherence to concrete and reinforcement.
- It is highly impermeable.
- It is resistant to freeze-thaw cycle.
Machine and Basement Preparation: Before machine is mounted, loose and defective areas should be cleaned and the surfaces which grout mortar to be applied should be roughened. Foreign matters such as oil and dust which may affect performance of the grout mortar on which surface is applied should be removed. Bleed ports must be drilled on base plate. The machine should be mounted and its balance and position should be adjusted. This position should never be changed. If block gages are removed, they should be lubricated little in order grout mortar not to be adhered. After the machine is mounted and adjustments are done, basement concrete should be saturated with water at least 6 hours before grout mortar is applied. Preparation of Mould: The moulds should be made of solid material which do not leak and absorb free water and it should be mounted to resist the strength that it faces. There should be a 5 cm filling gap between base plate and the mould which grout mortar is poured. In order to spread the grout mortar, mould height should also be considered on pouring side.
Recommended amount of clean water is poured into a mixture bucket. eile Grout 50 C is added into the bucket slowly. It is mixed by a low speed mixer for 3-4 minutes until a homogeneous mixture is obtained. After material is allowed to stand for 4-5 minutes, it’s mixed again for 30 seconds and it is ready to use.
Karışım Oranı: For 25 kg’ sack: 3,5-4 l water, For 1 kg powder product: 0,140-0,160 lt water, Mixture density: 1,9-2,1 gr/cm3

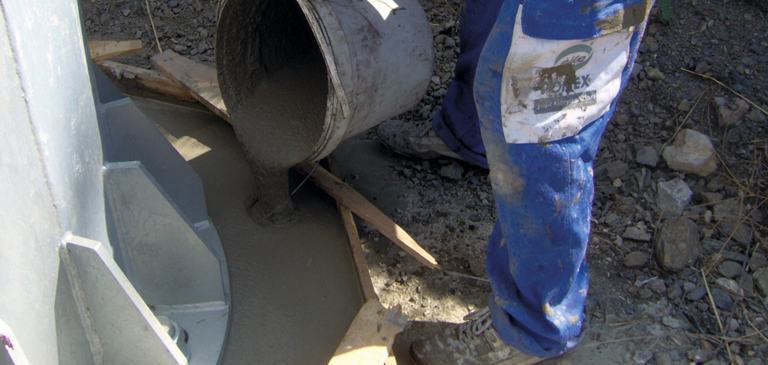

If there are different machines operating around the machine of which base filling is done, it should be determined to what extent their vibrations are transmitted. If necessary, operating machines should be stopped until grout mortar is set (at 20°C for 10-12 hours at least). The grouting should be consistent and no vibrator should be used. It’s enough to pour from one side in order to remove air gaps. Two sided pouring must not be done. The grouting should fill between base plate and base fully. The exposed surfaces should be protected against dehydration for 24 hours at least. It’s recommended that application is done between +5°C -+30°C.
- In areas open to atmosphere, especially in hot, dry or windy areas, the special curing materials should be protected against rapid evaporation for 24-48 hours.
- The material should be used at 20°C within 30 minutes.
- The ambient and floor temperature should be within below mentioned values since application floor and ambient influence hydration reaction of the cement.
- The application should be done in 10 mm minimum and 40 mm maximum. For thicker applications, the material should be applied as 2-3 coats or it should be applied as one coat by adding clean aggregate into grout mortar.
- When material is spreading no vibrator should be used.

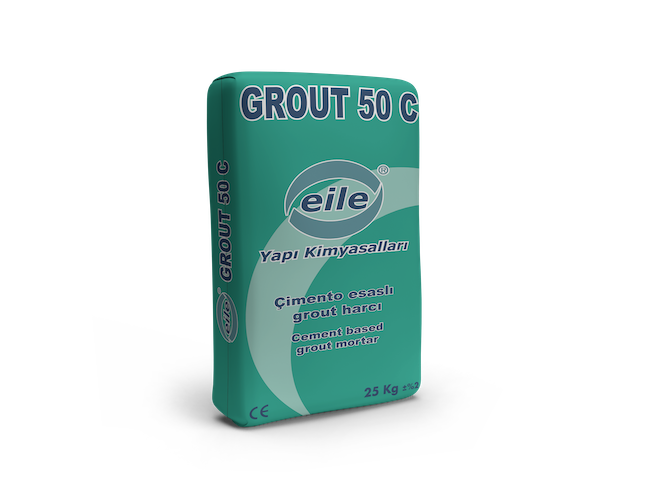

25 kg kraft sack
t should be stored in unopened original package in a cool and dry place and stack maximum 10 packages on top of each other.
